Matter & EM radiation

Photoelectric effect

E = hf, work function, E_k(max) = hf − W₀, and the particle nature of light.

CAPS

Grade 12 · Physical Sciences (Physics) · Matter & EM radiation

Physics is Physical Sciences Paper 1.

  • The paper

    Grade 12 Paper 1 covers Newton’s laws, momentum, work, energy and power, Doppler, electrostatics, electric circuits, electrodynamics and optical phenomena.

  • Working

    Write the formula as it appears on the data sheet, substitute with units, then the answer with the unit and the direction if it is a vector. A positive direction you chose must be stated when the sign matters.

  • The relation

    E = h f. Photon energy

  • How a marker reads it

    If hf < W₀, no electrons are emitted. Intensity does not save you — only frequency does.

Paper 1 is 150 marks. The data sheet is allowed. A formula copied wrong cannot be saved by a tidy final number.

hf

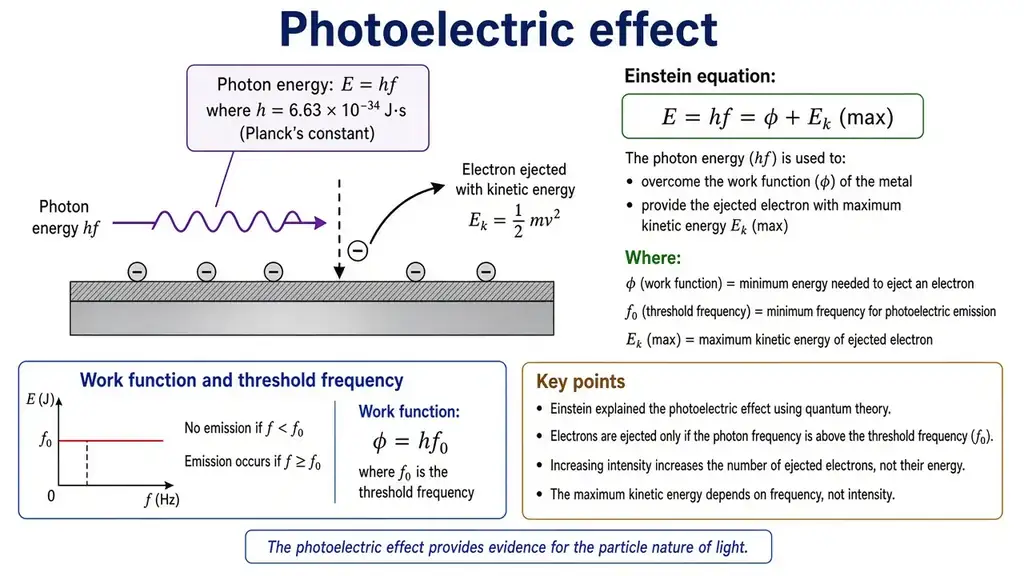

Diagram

Worked example

Light of wavelength 400 nm hits a metal with W₀ = 2.0 eV. Find E_k(max) in eV. (h = 6.63×10⁻³⁴, c = 3.0×10⁸)

Before any working — hunt first

Given

Numbers and units already in the sentence: 400 nm · 2.0 eV · 6.63 · 10⁻³ · 3.0 · 10. Copy each one into a column. A name without a number is not given.

Missing

After you copy the given, the letter that still has no number is missing. The paper is pointing at: E_k(max) in eV. Circle that word — that is the missing variable.

Find

We are required to find: E_k(max) in eV. Write that as a symbol on the left, with a question mark, before you touch a formula.

Calculate

Write E = h f with empty letters. Cross out every letter that already has a number. Calculate the letter that is still standing — that gives E_k(max) in eV.

Simplified approach

Convert 400 nm to metres. E = hc/λ in joule, then1.6×10⁻¹⁹ for eV. Subtract W₀.

Culture note

Solar geysers on RDP roofs in Gauteng convert photon energy — photoelectric thinking, even if the device is thermal.

Formulas

E=h f

Photon energy

Ek(max)=hf−W₀

Einstein’s photoelectric equation

How to hunt the missing letter

Do not start by naming the letters. First hunt the missing one: copy every number you can see (Given). The letter with no number is Missing. The asking word is Find. The formula that still contains that letter is what you Calculate.

How to hunt: (1) Underline every number and its unit — those are Given. (2) Circle the asking word — find, calculate, how far, what is. That word names Find. (3) The letter the asking word names, which has no number yet, is Missing. (4) Write the formula with empty letters. Cross out every given letter. The letter still standing is what you Calculate.

  • h

    Planck’s constant

    How you spot this in the sentence

    When the sentence names the Planck’s constant, that letter is h. Copy the number next to it into Given. If the sentence never names it, h is Missing. h = 6,63 × 10⁻³⁴ J·s. E = h f for one photon.

    Example:A 5×10¹⁴ Hz photon: E=3,315×10⁻¹⁹ J.

  • W₀

    work function

    How you spot this in the sentence

    When the sentence names the work function, that letter is W₀. Copy the number next to it into Given. If the sentence never names it, W₀ is Missing. Minimum energy to free an electron from that metal. W₀ = h f₀.

    Example:E_k(max) = hf − W₀. If hf < W₀, no electron leaves.

  • f₀

    cut-off frequency

    How you spot this in the sentence

    When the sentence names the cut-off frequency, that letter is f₀. Copy the number next to it into Given. If the sentence never names it, f₀ is Missing. The slowest light that still frees electrons from that metal.

    Example:Below f₀ you get no photoelectric current, no matter how bright.

Exam tricks you must know

These are the moves markers look for — not shortcuts that skip the method, but the habits that earn the method mark.

  • If hf < W₀, no electrons — intensity cannot save you

    How:Hunt f and W₀ (or λ and convert with c = fλ). Calculate hf and compare with W₀ before any E_k. Write the sentence: “hf is less than the work function, so no photoelectrons.” Intensity only changes the number of electrons once they are emitted.

    When to use it:Threshold frequency, work function, and “bright red light” traps.

  • List the five, then pick the equation that still has the missing letter

    How:Write a column: v_i, v_f, a, Δt, Δx. Tick every one that has a number. The unticked letter is Missing. Choose the SUVAT line that does not need a letter you do not have — do not start from the formula you remember first.

    When to use it:Any constant-acceleration question that names times, speeds or distances.

  • Use g = 9,8 unless the paper says take g = 10

    How:Copy g from the data sheet onto your given column first. If the instruction line says “take g = 10”, write that. Otherwise 9,8 m·s⁻². Using 10 when the paper did not say so loses the accuracy mark even if the method is right.

    When to use it:Free fall, projectiles, weight, and gravitational potential energy.

Step 1 / 8

Step A — Read the question twice

Slow down. Circle the word that names the unknown. Underline every number and its unit. Do not grab a formula yet — first decide what the paper is actually asking.

Why this step: If you can say the method in a sentence, you will pick the right formula. First-timers skip this and grab the first equation they remember.

More worked examples

Board walkthroughs on this topic. Open one, copy the working, then try the next.

Example 1 / 20

Light of frequency 5.0 × 10¹⁴ Hz on a metal with work function 2.0 × 10⁻¹⁹ J. Max Eₖ of photoelectrons? h = 6.63×10⁻³⁴.

4. Step-by-step working

  1. 01

    Photoelectric

    Eₖ(max)=h f−W₀.

    Ek=hf−W0
  2. 02

    Calculate

    hf=3.315×10⁻¹⁹ J, so Eₖ(max)=3.315×10⁻¹⁹−2.0×10⁻¹⁹=1.315×10⁻¹⁹ J.

    1.315×10⁻¹⁹ J

How we got there

Read this like a teacher at the board. We go slowly, name every number, and say why we take each step.

Explain in another language · 11

1. What is the question asking?

Read the question twice. Circle the unknown. Underline every number and unit. The paper is asking: Light of frequency 5.0 × 10¹⁴ Hz on a metal with work function 2.0 × 10⁻¹⁹ J. Max Eₖ of photoelectrons? h = 6.63×10⁻³⁴.

Before any working — hunt first

Given

Numbers and units already in the sentence: 5.0 · 10¹ · 2.0 · 10⁻¹ · 6.63 · 10⁻³. Copy each one into a column. A name without a number is not given.

Missing

After you copy the given, the letter that still has no number is missing. The paper is pointing at: 63×10⁻³⁴. Circle that word — that is the missing variable.

Find

We are required to find: 63×10⁻³⁴. Write that as a symbol on the left, with a question mark, before you touch a formula.

Calculate

Write E_k = hf − W_0 with empty letters. Cross out every letter that already has a number. Calculate the letter that is still standing — that gives 63×10⁻³⁴.

In other words — as if you have never seen this before

If you have never seen this before: E = hf. Eₖ(max) = hf − W₀. If hf < W₀, no emission. We will name a method in words, write the formula with no numbers, then substitute one line at a time.

2. What do we already know?

f=5.0×10¹⁴ Hz, W₀=2.0×10⁻¹⁹ J.

3. Which method — and why this one?

E = hf. Eₖ(max) = hf − W₀. If hf < W₀, no emission.

4. Step-by-step working

  1. 01 / 05

    Photoelectric

    Eₖ(max)=h f−W₀.

    Ek=hf−W0

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  2. 02 / 05

    Calculate

    hf=3.315×10⁻¹⁹ J, so Eₖ(max)=3.315×10⁻¹⁹−2.0×10⁻¹⁹=1.315×10⁻¹⁹ J.

    1.315×10⁻¹⁹ J

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  3. 03 / 05

    Step G — Sense-check the size

    Ask: is this the kind of number a Grade 10–12 paper would want? A speed of 3 000 ms for a learner walking, or a probability bigger than 1, means a unit or algebra slip. Estimate first: round the numbers and do the sum in your head.

    Why this step: Markers write ‘unrealistic’ in the margin when the method is right but the size is wild. A 10-second head check often finds a missing 10² or a unit that never changed.

  4. 04 / 05

    Step F — Box the answer with its unit

    1.315 × 10⁻¹⁹ J

    Why this step: A number without a unit is half a mark on a Physics paper, and a marker can miss a Maths answer that is buried in working.

  5. 05 / 05

    Step H — What the marker is looking for

    On an NSC memo you usually earn: (1) a method mark for naming the right formula or idea in words, (2) an accuracy mark for substituting the given numbers with units, (3) an accuracy mark for the boxed answer with its unit. Write those three lines even if you are unsure of the arithmetic — blank pages score zero.

    Why this step: First-timers chase the final number and leave the method blank. The memo still pays out for the idea and the substitution even when the last line is wrong.

5. The answer

1.315 × 10⁻¹⁹ J

Copy onto your answer sheet — in this order

Formula: Ek=hf−W0

Answer: 1.315 × 10⁻¹⁹ J

6. Check it like a marker

Intensity does not change Eₖ(max). Frequency does.

7. A trap first-timers fall into

First-timers often grab the first formula they remember, mix units (cm with m, minutes with seconds), or drop a minus sign. Write the formula in words first: “this equals that, because…”
