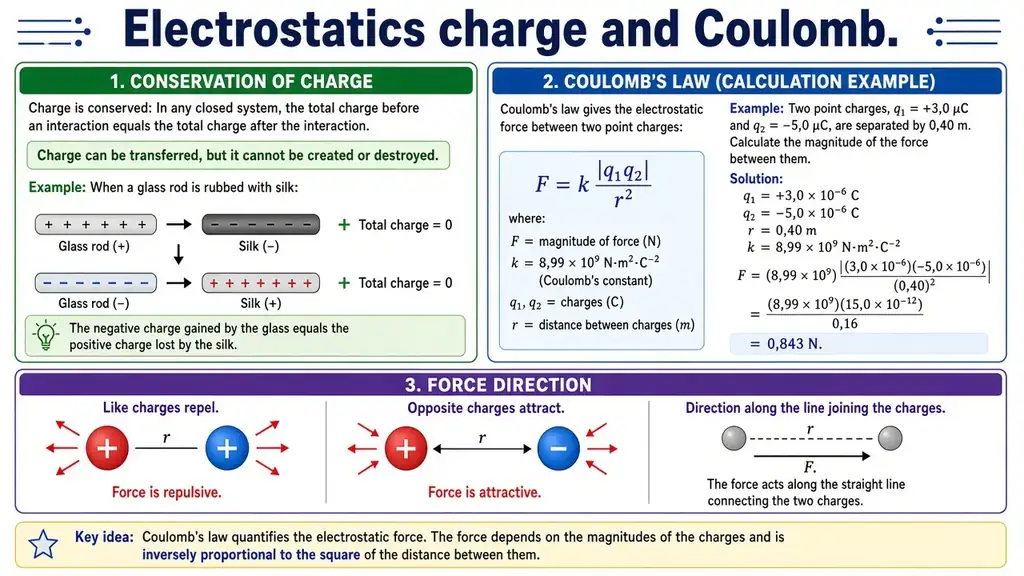

Electrostatics: charge & Coulomb

Charge is quantised in e = 1.6×10⁻¹⁹ C. Conservation. Coulomb’s law F = k Q₁Q₂ / r² with k = 9×10⁹.

CAPS

Grade 11 · Physical Sciences (Physics) · Electricity

Physics is Physical Sciences Paper 1.

  • The paper

    Grade 11 Paper 1 builds Newton’s laws, momentum in one dimension, electrostatics, electric circuits and geometrical optics.

  • Working

    Write the formula as it appears on the data sheet, substitute with units, then the answer with the unit and the direction if it is a vector. A positive direction you chose must be stated when the sign matters.

  • The relation

    Q = n e. Quantisation of charge

  • How a marker reads it

    State attractive or repulsive. A magnitude alone is not a full vector answer.

Paper 1 is 150 marks. The data sheet is allowed. A formula copied wrong cannot be saved by a tidy final number.

+−F

Diagram

Worked example

Two+2.0 µC charges, 0.30 m apart. Find F. k=9.0×10⁹.

Before any working — hunt first

Given

Numbers and units already in the sentence: 2.0 µC · 0.30 m · 9.0 · 10. Copy each one into a column. A name without a number is not given.

Missing

After you copy the given, the letter that still has no number is missing. The paper is pointing at: F. Circle that word — that is the missing variable.

Find

We are required to find: F. Write that as a symbol on the left, with a question mark, before you touch a formula.

Calculate

Write Q = n e with empty letters. Cross out every letter that already has a number. Calculate the letter that is still standing — that gives F.

Simplified approach

Convert µC to C (×10⁻⁶). Square the distance. Same signs repel.

Culture note

Two like-charged balloons after rubbing on a school jersey in Polokwane — they refuse to touch. That is Coulomb.

Formulas

Q=n e

Quantisation of charge

F=k Q₁ Q₂r²

Coulomb’s law

How to hunt the missing letter

Do not start by naming the letters. First hunt the missing one: copy every number you can see (Given). The letter with no number is Missing. The asking word is Find. The formula that still contains that letter is what you Calculate.

How to hunt: (1) Underline every number and its unit — those are Given. (2) Circle the asking word — find, calculate, how far, what is. That word names Find. (3) The letter the asking word names, which has no number yet, is Missing. (4) Write the formula with empty letters. Cross out every given letter. The letter still standing is what you Calculate.

  • Q

    charge

    How you spot this in the sentence

    When the sentence names the charge, that letter is Q. Copy the number next to it into Given. If the sentence never names it, Q is Missing. Q = n e. Same as Grade 10 — then feed Q into Coulomb’s law.

    Example:n=1×10¹² electrons: Q=−1,6×10⁻⁷ C.

  • k

    Coulomb’s constant

    How you spot this in the sentence

    When the sentence names the Coulomb’s constant, that letter is k. Copy the number next to it into Given. If the sentence never names it, k is Missing. k = 9,0 × 10⁹ N·m²/C² in F = k Q₁ Q₂ / r².

    Example:Convert μC to C before you substitute: 1 μC = 1 × 10⁻⁶ C.

Exam tricks you must know

These are the moves markers look for — not shortcuts that skip the method, but the habits that earn the method mark.

  • List the five, then pick the equation that still has the missing letter

    How:Write a column: v_i, v_f, a, Δt, Δx. Tick every one that has a number. The unticked letter is Missing. Choose the SUVAT line that does not need a letter you do not have — do not start from the formula you remember first.

    When to use it:Any constant-acceleration question that names times, speeds or distances.

  • Use g = 9,8 unless the paper says take g = 10

    How:Copy g from the data sheet onto your given column first. If the instruction line says “take g = 10”, write that. Otherwise 9,8 m·s⁻². Using 10 when the paper did not say so loses the accuracy mark even if the method is right.

    When to use it:Free fall, projectiles, weight, and gravitational potential energy.

  • State “mechanical energy is conserved” in words before you substitute

    How:The method mark sits in the sentence, not in the algebra. Write: mechanical energy conserved because no non-conservative work (or friction is neglected). Then E_k + E_p at A = E_k + E_p at B. Then substitute.

    When to use it:Any conservation question, rollers, pendulums, or falling masses.

Step 1 / 5

Convert

Q=2.0×10⁻⁶ C.

Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

4. Step-by-step working

  1. 01

    Convert

    Q=2.0×10⁻⁶ C.

  2. 02

    Coulomb

    F=(9.0×10⁹)(2.0×10⁻⁶)²(0.30)²=0.40 N, repulsive.

    0.40 N

More worked examples

Board walkthroughs on this topic. Open one, copy the working, then try the next.

Example 1 / 20

Two identical metal spheres carry +6 µC and −2 µC. They touch and are then placed 0.10 m apart. Find the charge on each sphere and the force between them. k = 9 × 10⁹ N·m²·C⁻².

4. Step-by-step working

  1. 01

    Share the charge

    Q=(Q₁ + Q₂)2=(6 + (−2))2=2 µC each.

    Q=2 µC
  2. 02

    Apply Coulomb’s law

    F=kQ²r²=(9 × 10⁹)(2.0 × 10⁻⁶)²(0.100)²=3.60 N.

    F=3.60 N
  3. 03

    Interpret

    Both spheres now carry the same sign, so the force is repulsive.

    repulsive

How we got there

Read this like a teacher at the board. We go slowly, name every number, and say why we take each step.

Explain in another language · 11

1. What is the question asking?

Read the question twice. Circle the unknown. Underline every number and unit. The paper is asking: Two identical metal spheres carry +6 µC and −2 µC. They touch and are then placed 0.10 m apart. Find the charge on each sphere and the force between them. k = 9 × 10⁹ N·m²·C⁻².

In other words — as if you have never seen this before

If you have never seen this before: Identical spheres share the total charge equally when they touch. Then use Coulomb’s law with the new charges. We will name a method in words, write the formula with no numbers, then substitute one line at a time.

2. What do we already know?

Q₁=+6 µC, Q₂=−2 µC, r=0.10 m after separation.

3. Which method — and why this one?

Identical spheres share the total charge equally when they touch. Then use Coulomb’s law with the new charges.

4. Step-by-step working

  1. 01 / 06

    Share the charge

    Q=(Q₁ + Q₂)2=(6 + (−2))2=2 µC each.

    Q=2 µC

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  2. 02 / 06

    Apply Coulomb’s law

    F=kQ²r²=(9 × 10⁹)(2.0 × 10⁻⁶)²(0.100)²=3.60 N.

    F=3.60 N

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  3. 03 / 06

    Interpret

    Both spheres now carry the same sign, so the force is repulsive.

    repulsive

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  4. 04 / 06

    Step G — Sense-check the size

    Ask: is this the kind of number a Grade 10–12 paper would want? A speed of 3 000 ms for a learner walking, or a probability bigger than 1, means a unit or algebra slip. Estimate first: round the numbers and do the sum in your head.

    Why this step: Markers write ‘unrealistic’ in the margin when the method is right but the size is wild. A 10-second head check often finds a missing 10² or a unit that never changed.

  5. 05 / 06

    Step F — Box the answer with its unit

    2 µC on each sphere; F = 3.60 N, repulsive.

    Why this step: A number without a unit is half a mark on a Physics paper, and a marker can miss a Maths answer that is buried in working.

  6. 06 / 06

    Step H — What the marker is looking for

    On an NSC memo you usually earn: (1) a method mark for naming the right formula or idea in words, (2) an accuracy mark for substituting the given numbers with units, (3) an accuracy mark for the boxed answer with its unit. Write those three lines even if you are unsure of the arithmetic — blank pages score zero.

    Why this step: First-timers chase the final number and leave the method blank. The memo still pays out for the idea and the substitution even when the last line is wrong.

5. The answer

2 µC on each sphere; F = 3.60 N, repulsive.

Copy onto your answer sheet — in this order

Formula: Q=2 µC

Answer: 2 µC on each sphere; F = 3.60 N, repulsive.

6. Check it like a marker

Do not use the charges from before the spheres touched. Add the charges WITH their signs before halving.

7. A trap first-timers fall into

First-timers often grab the first formula they remember, mix units (cm with m, minutes with seconds), or drop a minus sign. Write the formula in words first: “this equals that, because…”
