Animals

Transport systems in mammals

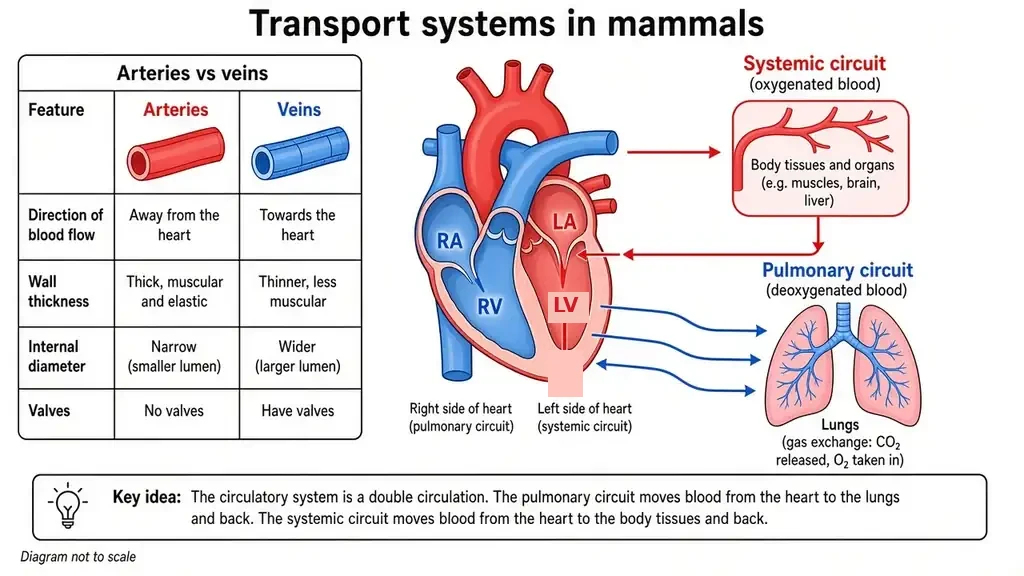

Mammals move oxygen, food and wastes in blood, pushed by a four-chambered heart through a double circulation.

CAPS

Grade 10 · Life Sciences · Animals

Life Sciences is two papers. Use the strand to know which one.

  • Where it is examined

    Grade 10 is the chemistry of life, cells, tissues, organs, support and transport, and the biosphere, biodiversity and the history of life.

  • How to write it

    Name the structure, then say what it does. A labelled diagram only scores if the labels are the biological names. “It helps the body” is not a function.

  • How a marker reads it

    A common mix-up is to say arteries always carry oxygenated blood. The pulmonary artery carries oxygen-poor blood to the lungs.

A 2-mark “explain” wants two facts, or one fact and its reason. Extra sentences that contradict the first one can cancel a mark.

RL

Diagram

Worked theory

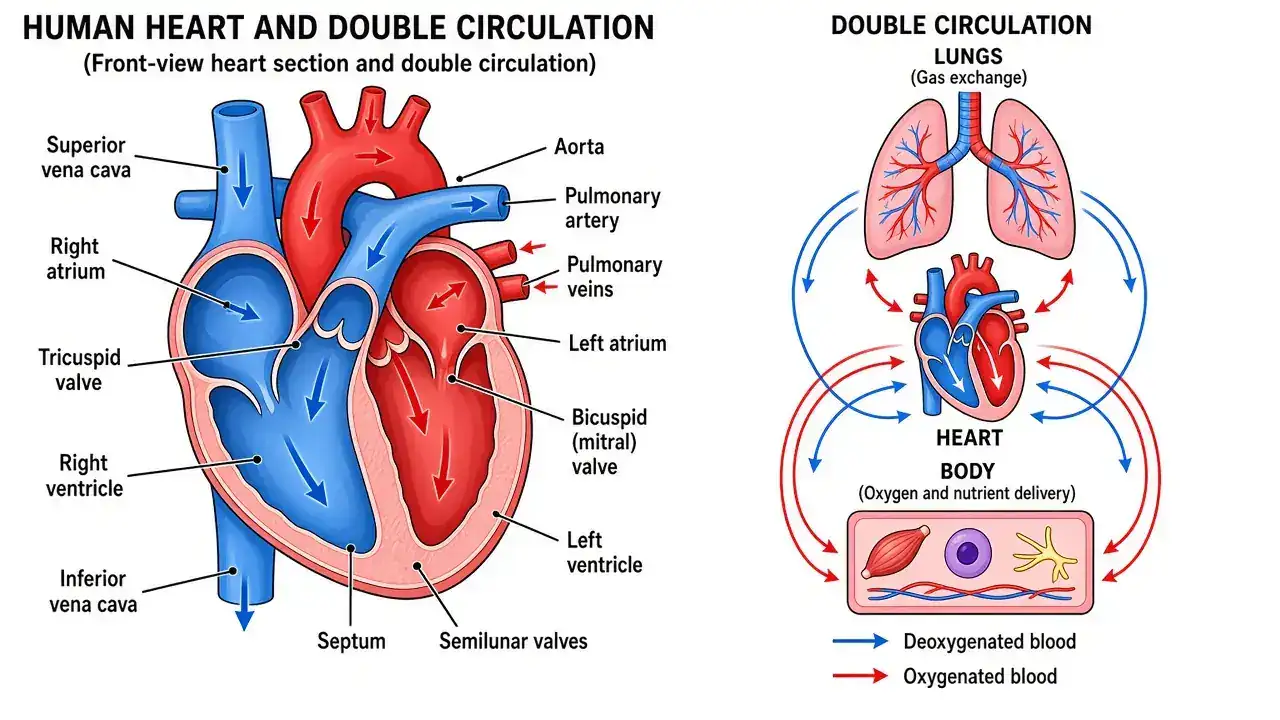

Worked theory. A learner runs to the taxi rank. Leg muscles need more oxygen. The left ventricle pushes oxygen-rich blood into the aorta and out through arteries. At the muscle capillaries, oxygen leaves and carbon dioxide enters. Veins bring that darker blood back to the right atrium, the right ventricle sends it to the lungs, and only then does it return to the left side. If a vein had no valves in the leg, blood would pool. If someone calls every red vessel an artery, they have skipped the rule: artery means away from the heart, not “the red one”.

More worked examples

  • The pulmonary artery

    Blood leaving the right ventricle toward the lungs is in an artery, because it is going away from the heart, and it is low in oxygen. Blood leaving the left ventricle in the aorta is also in an artery, and it is high in oxygen. The word artery does not mean red. At the lungs the pulmonary vein, going back to the heart, is the vessel that is suddenly oxygen-rich.

  • A coronary artery

    The coronary arteries leave the aorta and feed the heart muscle itself. They are arteries, so the blood in them has just come from the lungs and is oxygen-rich. If one of them is blocked, that patch of muscle is starved even though the chambers are full of blood. The blood inside the chambers is not what feeds the wall. The wall has its own supply. That is why a blockage there is a heart attack, not a cut on the skin.

In ordinary words

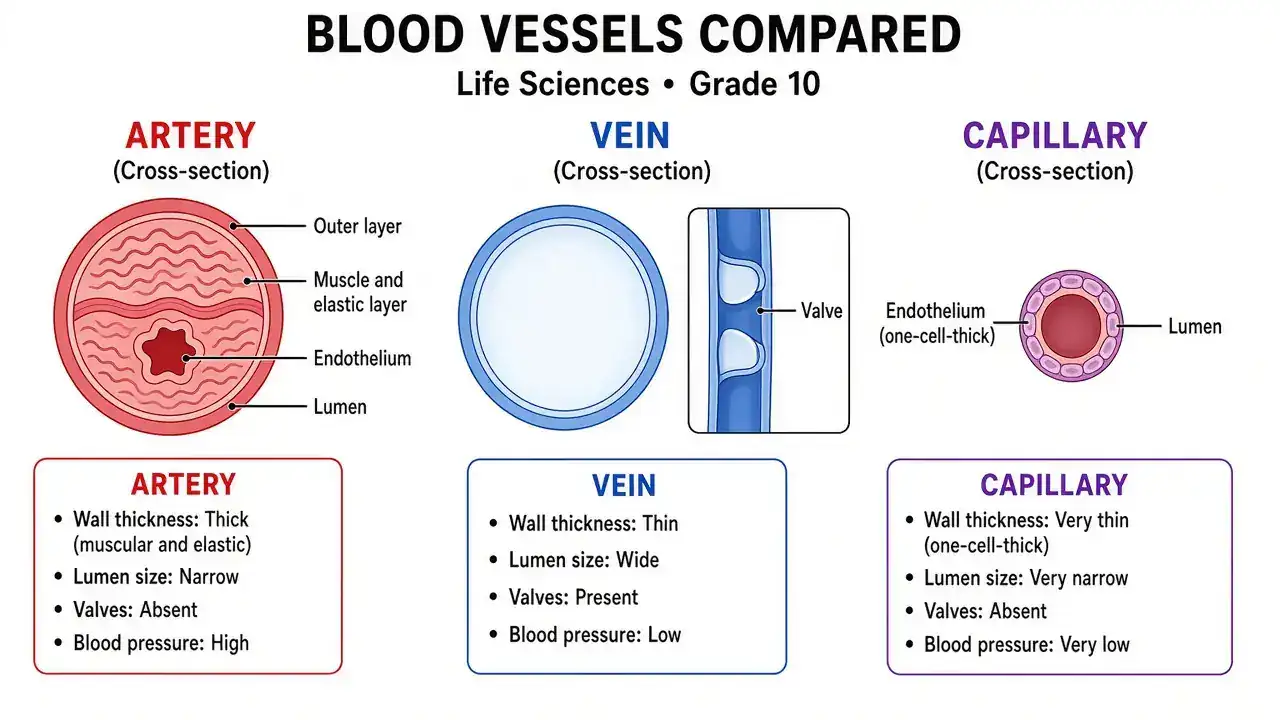

The right side of the heart sends blood to the lungs. The left side sends blood to the body. Arteries carry blood away from the heart under high pressure, with thick walls. Veins carry blood back, with thinner walls and valves so it does not fall back. Capillaries are one cell thick, so oxygen, carbon dioxide and food can diffuse. Valves in the heart keep the flow one way. The wall of the left ventricle is thickest because it must push blood through the whole body.

In South Africa

The pulse at the wrist is an artery. The vessel a nurse draws blood from in the arm is a vein.

Part 1 / 4

What it is

Mammals move oxygen, food and wastes in blood, pushed by a four-chambered heart through a double circulation.

Diagram
Diagram

More worked examples

Board walkthroughs on this topic. Open one, copy the working, then try the next.

Example 1 / 20

A person's heart beats 72 times per minute and pumps 70 mℓ per beat. Calculate the cardiac output in litres per minute.

4. Step-by-step working

  1. 01

    Multiply

    72×70=5 040 mℓmin.

  2. 02

    Convert units

    5 040 mℓ=5,04 ℓmin.

How we got there

Read this like a teacher at the board. We go slowly, name every number, and say why we take each step.

Explain in another language · 11

1. What is the question asking?

Read the question twice. Circle the unknown. Underline every number and unit. The paper is asking: A person's heart beats 72 times per minute and pumps 70 mℓ per beat. Calculate the cardiac output in litres per minute.

Before any working — hunt first

Given

Numbers and units already in the sentence: 72 times · 70 m. Copy each one into a column. A name without a number is not given.

Missing

After you copy the given, the letter that still has no number is missing. The paper is pointing at: the cardiac output in litres per minute. Circle that word — that is the missing variable.

Find

We are required to find: the cardiac output in litres per minute. Write that as a symbol on the left, with a question mark, before you touch a formula.

Calculate

What we need to calculate: Cardiac output = heart rate × stroke volume. Then substitute the given, one line at a time, to get the cardiac output in litres per minute.

In other words — as if you have never seen this before

If you have never seen this before: Cardiac output = heart rate × stroke volume. We will name a method in words, write the formula with no numbers, then substitute one line at a time.

2. What do we already know?

Heart rate 72min; stroke volume 70 mℓ.

3. Which method — and why this one?

Cardiac output = heart rate × stroke volume.

4. Step-by-step working

  1. 01 / 05

    Multiply

    72×70=5 040 mℓmin.

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  2. 02 / 05

    Convert units

    5 040 mℓ=5,04 ℓmin.

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  3. 03 / 05

    Step G — Sense-check the size

    Ask: is this the kind of number a Grade 10–12 paper would want? A speed of 3 000 ms for a learner walking, or a probability bigger than 1, means a unit or algebra slip. Estimate first: round the numbers and do the sum in your head.

    Why this step: Markers write ‘unrealistic’ in the margin when the method is right but the size is wild. A 10-second head check often finds a missing 10² or a unit that never changed.

  4. 04 / 05

    Step F — Box the answer with its unit

    5,04 ℓ per minute.

    Why this step: A number without a unit is half a mark on a Physics paper, and a marker can miss a Maths answer that is buried in working.

  5. 05 / 05

    Step H — What the marker is looking for

    On an NSC memo you usually earn: (1) a method mark for naming the right formula or idea in words, (2) an accuracy mark for substituting the given numbers with units, (3) an accuracy mark for the boxed answer with its unit. Write those three lines even if you are unsure of the arithmetic — blank pages score zero.

    Why this step: First-timers chase the final number and leave the method blank. The memo still pays out for the idea and the substitution even when the last line is wrong.

5. The answer

5,04 ℓ per minute.

Copy onto your answer sheet — in this order

Answer: 5,04 ℓ per minute.

6. Check it like a marker

A resting adult pumps about 5 ℓmin.

7. A trap first-timers fall into

First-timers often grab the first formula they remember, mix units (cm with m, minutes with seconds), or drop a minus sign. Write the formula in words first: “this equals that, because…”
