Climate

Composition and structure of the atmosphere

The atmosphere is the layer of gases around Earth. Its structure and its greenhouse gases decide the weather we live in.

CAPS

Grade 10 · Geography · Climate

Geography examines physical and human processes, with map skills in both papers.

  • The papers

    Paper 1 is climate and weather, and geomorphology, with geographical skills. Paper 2 is rural and urban settlement, and the economic geography of South Africa, with geographical skills. Each paper is 150 marks.

  • Map work

    Direction, scale, gradient, cross-section and a calculation from the map must show the formula and the substitution. A place you cannot point to on the extract is a guess.

  • How a marker reads it

    A common mix-up is to put the ozone hole and global warming in the same sentence as if they were the same problem.

Paragraph questions want causes and effects in sequence. Naming a term without saying how it changes the landscape or the settlement is only the first mark.

layers

Diagram

Worked theory

Worked theory. A summer day on the Highveld. The sun heats the ground. The ground heats the air next to it, in the troposphere, so clouds and storms live there, not up in the ozone layer. Ozone is busy absorbing ultraviolet light higher up, which is why a thinning ozone layer raises sunburn risk without being “the weather”. Carbon dioxide is a tiny fraction of the air and still matters, because it traps heat on the way out. Adding more of it changes the balance. The layer cake and the greenhouse are two different jobs of the same atmosphere.

More worked examples

  • A spring day in Polokwane

    The storm that soaks a soccer field is in the troposphere, a few kilometres up. The ozone that blocks the worst ultraviolet light is in the stratosphere, far above the cloud. Sunscreen and the ozone layer are about ultraviolet. The muggy heat after the storm is the greenhouse effect of water vapour and carbon dioxide, not the ozone. Closing the ozone hole would not stop that heat.

  • June in Cape Town and in Pretoria

    In June the southern hemisphere leans away from the sun, so both cities have a lower sun than in December. Cape Town, in the winter-rainfall belt, gets fronts and rain. Pretoria, inland and north, is in its dry season. The tilt explains the low sun in both places. It does not give them the same rain. A learner who says “June is winter so the whole country is wet” has used the tilt and skipped the pressure belts.

In ordinary words

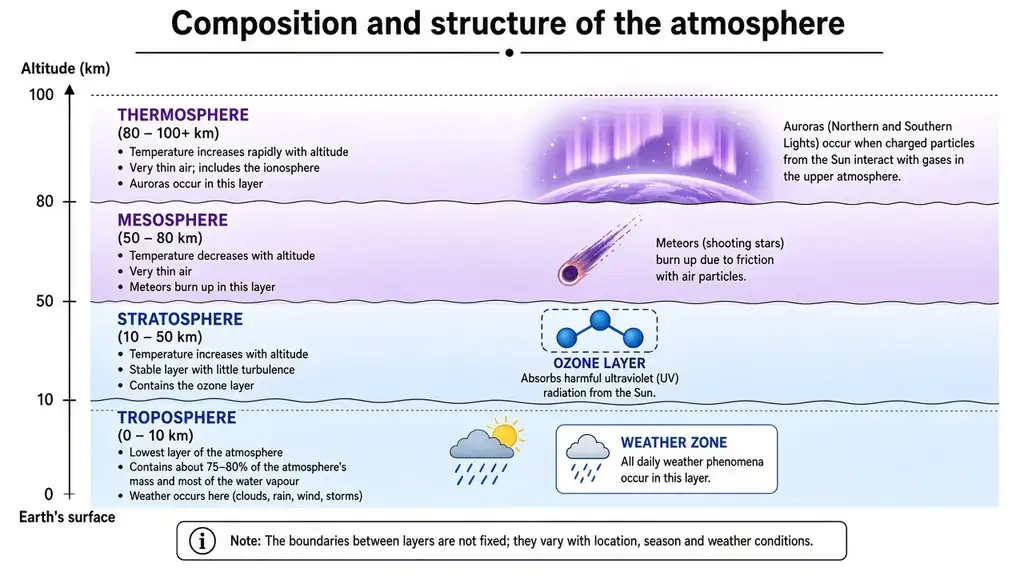

From the ground up, the troposphere is where weather happens, the stratosphere holds the ozone that absorbs harmful ultraviolet light, and higher layers thin out toward space. The air is mostly nitrogen and oxygen, with a small share of carbon dioxide and water vapour. Those few greenhouse gases let sunlight in and slow the escape of heat. Without them Earth would be frozen. The ozone layer is not the same thing as the greenhouse effect.

In South Africa

Highveld thunderstorms in summer are troposphere weather you can stand under.

Part 1 / 4

What it is

The atmosphere is the layer of gases around Earth. Its structure and its greenhouse gases decide the weather we live in.

Diagram

More worked examples

Board walkthroughs on this topic. Open one, copy the working, then try the next.

Example 1 / 20

The temperature at sea level is 25 °C. Using the environmental lapse rate of 6,5 °C per 1 000 m, calculate the temperature at the top of a 3 000 m mountain.

4. Step-by-step working

  1. 01

    Multiply

    3×6,5=19,5 °C drop.

  2. 02

    Subtract

    25−19,5=5,5 °C.

How we got there

Read this like a teacher at the board. We go slowly, name every number, and say why we take each step.

Explain in another language · 11

1. What is the question asking?

Read the question twice. Circle the unknown. Underline every number and unit. The paper is asking: The temperature at sea level is 25 °C. Using the environmental lapse rate of 6,5 °C per 1 000 m, calculate the temperature at the top of a 3 000 m mountain.

In other words — as if you have never seen this before

If you have never seen this before: Temperature falls with height in the troposphere. We will name a method in words, write the formula with no numbers, then substitute one line at a time.

2. What do we already know?

25 °C; 3 000 m.

3. Which method — and why this one?

Temperature falls with height in the troposphere.

4. Step-by-step working

  1. 01 / 05

    Multiply

    3×6,5=19,5 °C drop.

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  2. 02 / 05

    Subtract

    25−19,5=5,5 °C.

    Why this step: We only do one job per line so a marker can follow the marks — and so you can find a slip without starting over.

  3. 03 / 05

    Step G — Sense-check the size

    Ask: is this the kind of number a Grade 10–12 paper would want? A speed of 3 000 ms for a learner walking, or a probability bigger than 1, means a unit or algebra slip. Estimate first: round the numbers and do the sum in your head.

    Why this step: Markers write ‘unrealistic’ in the margin when the method is right but the size is wild. A 10-second head check often finds a missing 10² or a unit that never changed.

  4. 04 / 05

    Step F — Box the answer with its unit

    5,5 °C.

    Why this step: A number without a unit is half a mark on a Physics paper, and a marker can miss a Maths answer that is buried in working.

  5. 05 / 05

    Step H — What the marker is looking for

    On an NSC memo you usually earn: (1) a method mark for naming the right formula or idea in words, (2) an accuracy mark for substituting the given numbers with units, (3) an accuracy mark for the boxed answer with its unit. Write those three lines even if you are unsure of the arithmetic — blank pages score zero.

    Why this step: First-timers chase the final number and leave the method blank. The memo still pays out for the idea and the substitution even when the last line is wrong.

5. The answer

5,5 °C.

Copy onto your answer sheet — in this order

Answer: 5,5 °C.

6. Check it like a marker

Lapse rate applies in the troposphere.

7. A trap first-timers fall into

First-timers often grab the first formula they remember, mix units (cm with m, minutes with seconds), or drop a minus sign. Write the formula in words first: “this equals that, because…”
